  • Scissor lift for sale trailer scissor lift for aerial work
Name:
Tel:
Email:
Message:

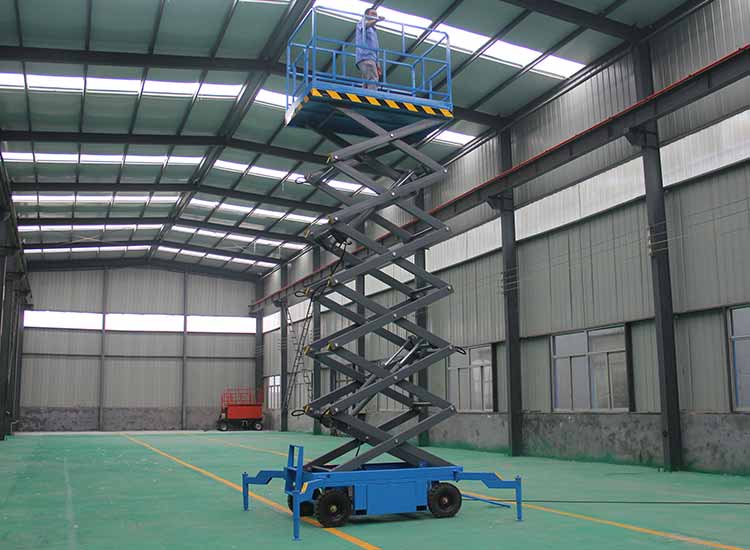

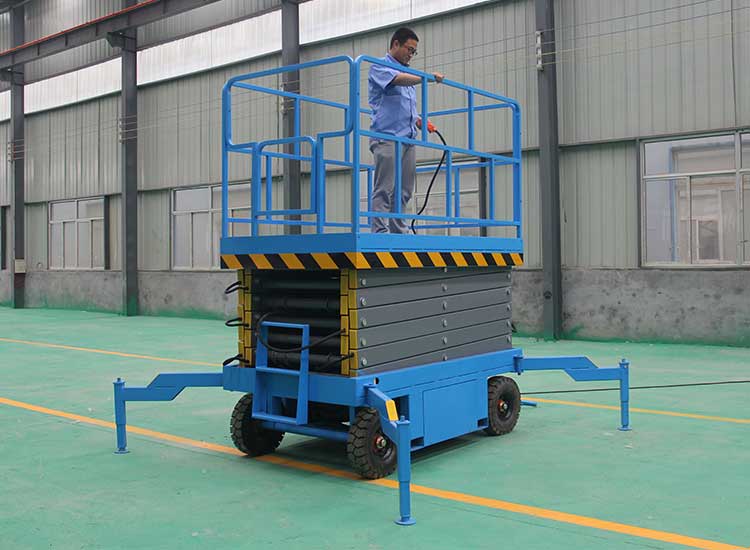

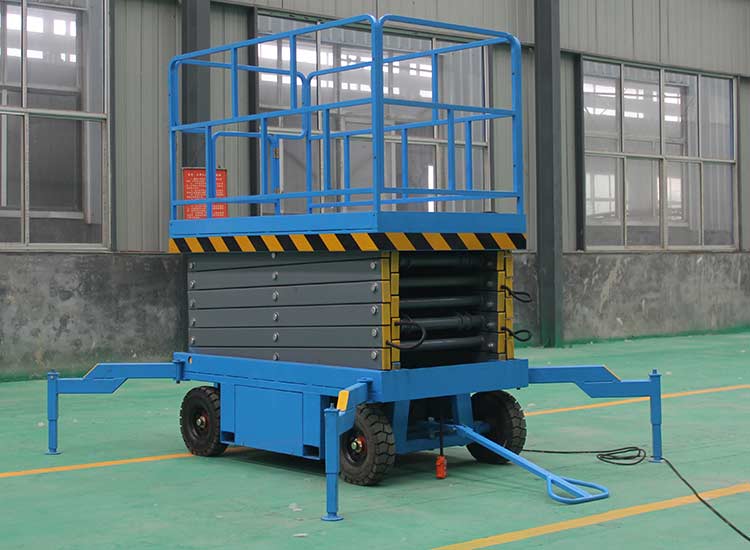

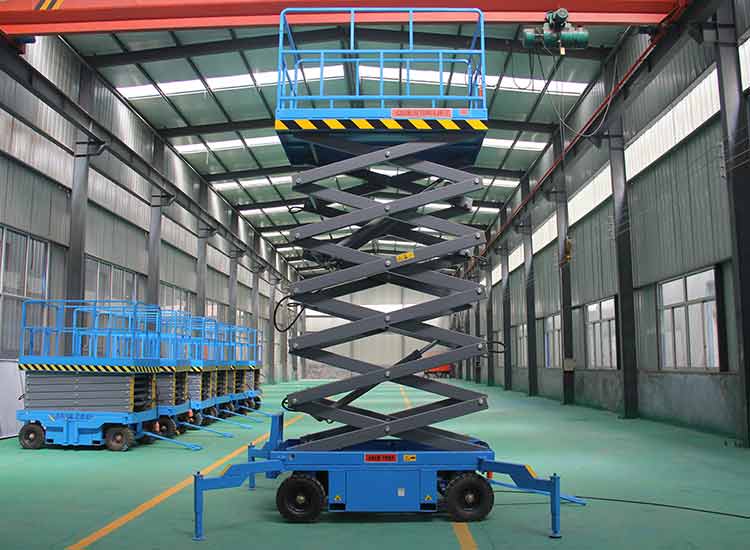

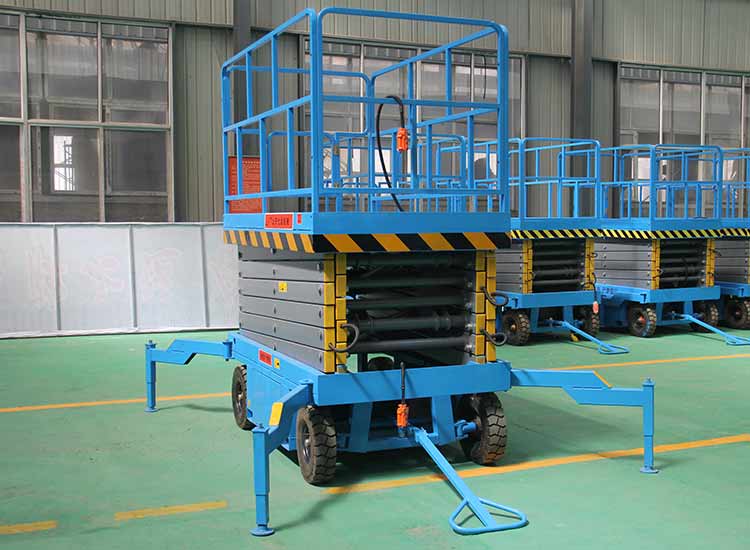

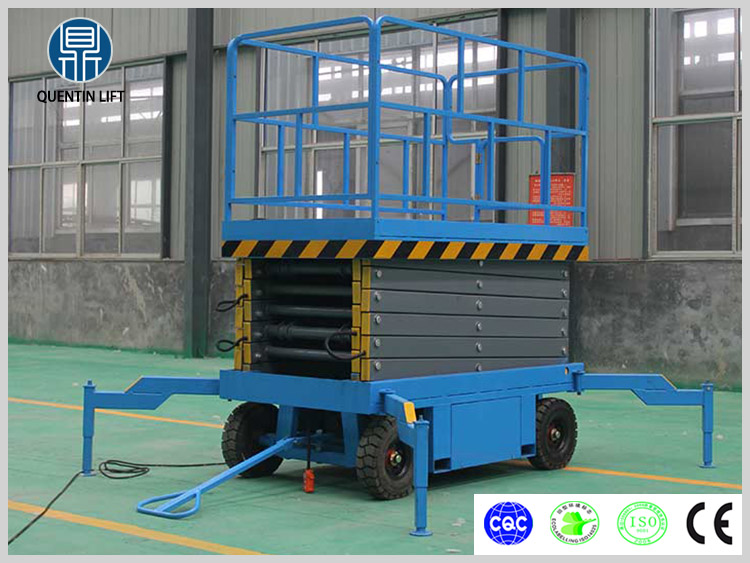

Mobile scissor aerial work platform is an equipment used in aerial work for maintenance. widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipments installations and maintenance.



1). Loading 500kg, 1ton, 1.5ton, 2ton

2). Lifting height from 4meters to 18meters available.

3). Voltage: 220V or 380v for your choice.

4).Table can be designed extension type.

5).There are AC power, DC power, AC/DC power, battery power, diesel power for your choise.


Model

Lifting Height

(m)

Loading

(kg)

Table Size

(mm)

Self Weight

(kg)

Dimension Size

(m)

QTSJY0.3-4

4

500

2100*830

800

2250*950*1100

QTSJY0.3-6

6

500

2100*830

880

2250*950*1200

QTSJY0.3-8

8

500

2100*930

1050

2250*1060*1380

QTSJY0.3-9

9

500

2100*930

1165

2250*1060*1500

QTSJY0.3-10

10

500

2100*1230

1360

2250*1350*1530

QTSJY0.3-11

11

500

2100*1230

1400

2250*1350*1650

QTSJY0.3-12

12

500

2550*1530

2260

2720*1670*1750

QTSJY0.3-14

14

500

2812*1530

2400

3067*1730*1810

QTSJY0.3-16

16

500

2812*1600

3500

3067*1810*2080

QTSJY0.3-18

18

500

3070*1600

3900

3321*1810*2080

QTSJY1.0-4

4

1000

2100*1200

1250

2250*1350*1180

QTSJY1.0-6

6

1000

2100*1200

1400

2250*1350*1300

QTSJY1.0-8

8

1000

2100*1200

1585

2250*1350*1420

QTSJY1.0-10

10

1000

2100*1200

1700

2250*1350*1530

QTSJY1.0-12

12

1000

2550*1530

2560

2796*1670*1750

QTSJY1.0-14

14

1000

2812*1530

2765

3067*1750*1810

QTSJY1.5-6

6

1500

2100*1530

1780

2250*1750*1530

QTSJY1.5-8

8

1500

2100*1530

2070

2250*1750*1690

QTSJY1.5-10

10

1500

2100*1530

2250

2250*1750*1850
