- Hydraulic aerial work lift platform

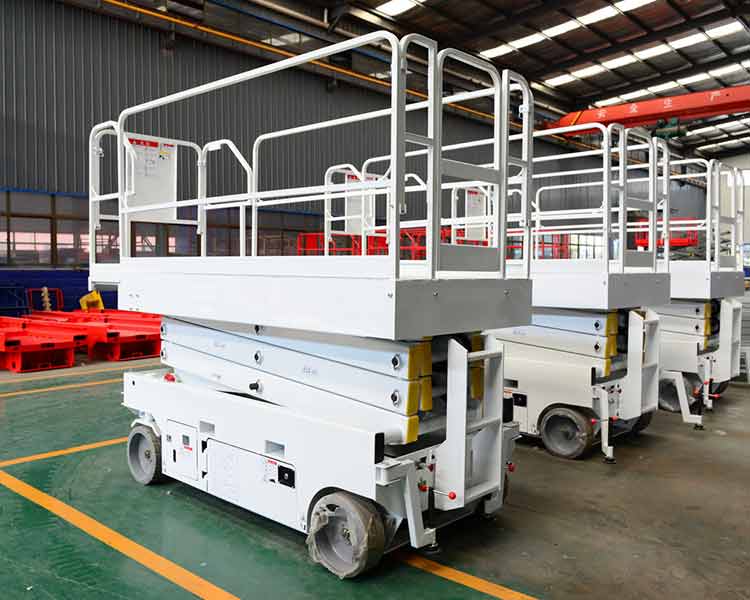

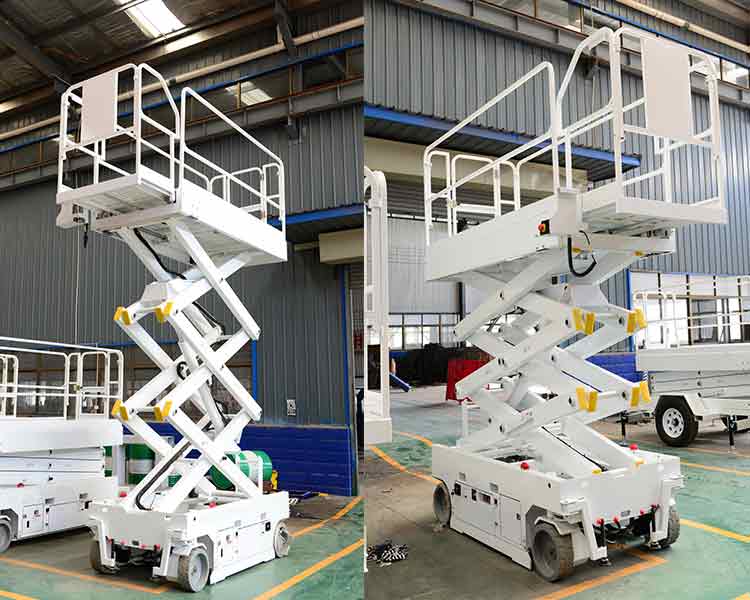

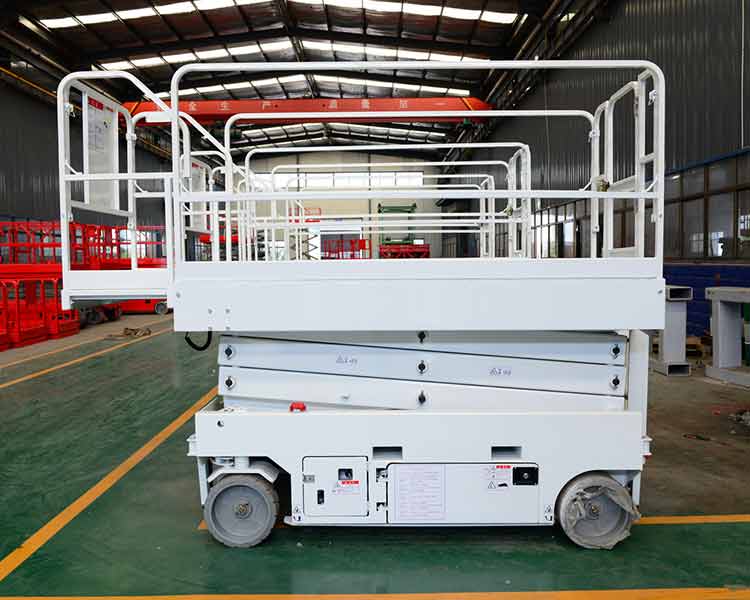

Self-propelled scissor lift : Self moving, walking, reversing, turning and lifting can be achieved on the platform board. Self-movement through the full height can be rrealized without any les. Convenient and flexible use improves the work efficiency.
The platform board is a protrusile checkered plate and the steel tube railing with a strong carrying capacity can be folded without any tool.
Feature:
1). Low noise allows the operation personel work in a slient environment and the large-angle steering system provides a good maneuverability.
2).Polyurethane solid tire, no damage to the floor.
3).Moving flexible in a narrow place.
4). The adoption of maintenance -free lifting arm sleeves, powder coating and nickel-plated bolts improves the wear resistance and extend the service life of the liftng platform.
Lifting heights: 3m, 4m, 5m,6m,8m,10m,12m,14m,16m,18m for your choice
|
Model |
QTSJPTZX 08B |
QTSJPTZX 10A |
QTSJPTZX 12A |
QTSJPTZX 14A |
QTSJPTZX 16A |
|
The Max. working height |
8m |
10m |
11.75m |
13.75m |
15.7m |
|
The Max. lifting height |
6m |
8m |
9.75m |
11.75m |
13.7m |
|
Platform Extension Size |
0.91m |
0.91m |
0.91m |
0.91m |
0.9m |
|
Loading Capacity |
350kg |
450kg |
320kg |
320kg |
220kg |
|
Platform Extensionload |
120kg |
120kg |
120kg |
120kg |
110kg |
|
Table Size |
2.25x0.75m |
2.3x1.17m |
2.3x1.17m |
2.3x1.17m |
2.64x1.12m |
|
Overall Length |
2.42m |
2.47m |
2.47m |
2.47m |
2.85m |
|
Overall Width |
0.8m |
1.18m |
1.18m |
1.18m |
1.4m |
|
Overall Height（handrail not folded） |
2.2m |
2.13m |
2.3m |
2.57m |
2.6m |
|
Overall Height（handrail folded） |
1.73m |
1.55m |
1.82m |
2.1m |
2.13m |
|
Wheel Base |
1.85m |
1.85m |
1.85m |
1.85m |
2.22m |
|
Grade-ability |
30% |
30% |
25% |
25% |
20% |
|
Ground Clearance(Stowed) |
0.1m |
0.1m |
0.1m |
0.1m |
0.1m |
|
Ground Clearance(Raised) |
0.019m |
0.019m |
0.019m |
0.019m |
0.019m |
|
Turning Radius(Inside) |
0m |
0m |
0m |
0m |
0m |
|
Turning Radius(Outside) |
2.12m |
2.3m |
2.3m |
2.3m |
2.7m |
|
Maximum Workers Number |
2 |
3 |
2 |
2 |
2 |
|
Up/Down Speed |
27/29sec. |
50/35sec. |
60/45sec. |
70/55sec. |
90/60sec. |
|
Travel Speed(Stowed) |
3.4km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
|
Travel Speed(Raised) |
0.7km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Power |
4*6v/225ah |
4*6v/225ah |
4*6v/225ah |
4*6v/225ah |
|
|
Tyre |
15x5x11inch |
15x5x11inch |
15x5x11inch |
15x5x11inch |
15x5x11inch |
|
Total Weight |
1690kg |
2245kg |
2490kg |
2910kg |
3320kg |
