• Product details

The GRADIN JH-6340A is the truest space-saving scissors car lift available today. If you have a limited space, but still like to have a full use lift, then the GRADIN JH-6340A Scissor Lift is the perfect choice for you. GRADIN’s Flush Mount JH-6340A Scissor Lift works great for raising vehicles high enough to walk underneath,and has a flush profile design that maximizes limited bay space. The JH-6340A is made stronger, more versatile, and easier to use and can lift 9,000lbs(4,000kgs).


Type: Four Cylinder Hydraulic Lift
Certification: CE
Lifting Capacity: 4000kg
Lifting Height(mm): 1850mm
Place of Origin: Jinan, China (Mainland)
Brand Name: GRADIN
Model Number: JH-6340A
Warranty: 15 Months
Name: portable stationary hydraulic car scissor lift platform price wit CE
Color: Blue, Red,etc
Optional Part: 60S/50S
Certificate:CE, CE, ISO approval car lift
Supply Ability: 1200 Set/Sets per Month for electric tire repair machine


Packaging & Delivery
Packaging Details
Port: Qingdao
Lead Time: 25 days after payment


Features:

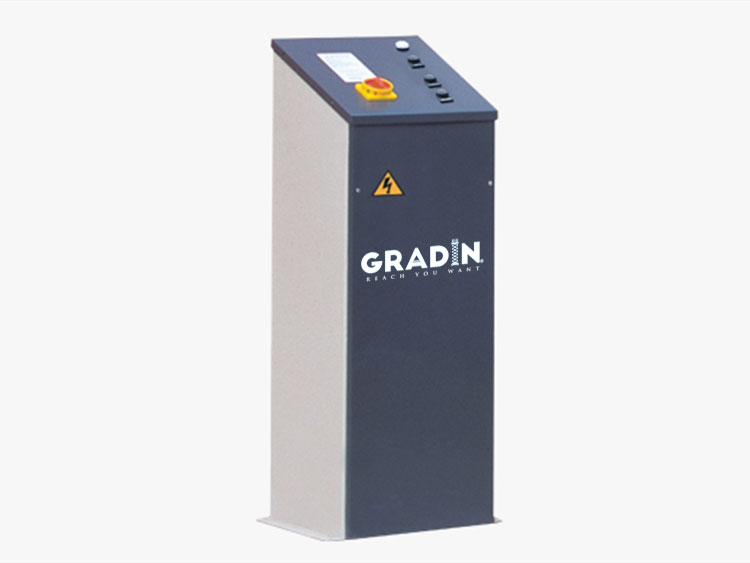

• 24V control system for safety operation;
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
• Hydraulic cylinders built with hose burst valves for safety protection;

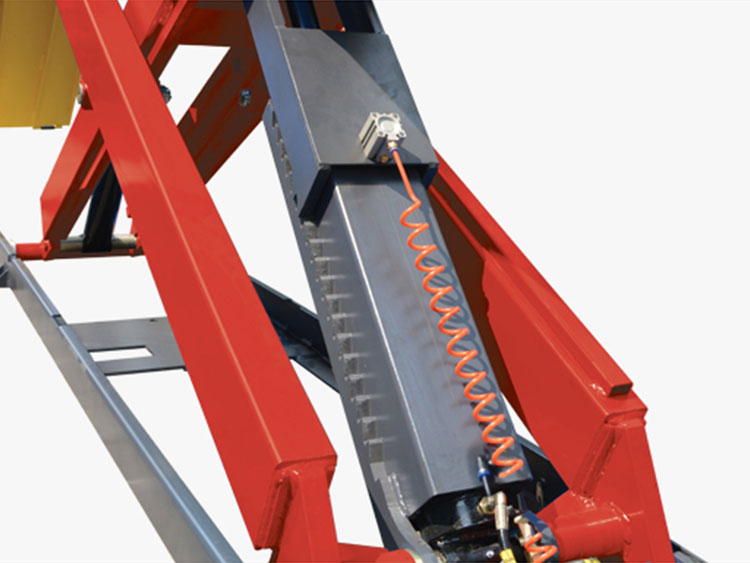

• Both mechanical and hydraulic lock system. This makes it one the safest small scissor lift in the world;
• A safety stop device at the height of 11 7/8"(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.


Parameter:



Product Description
1. Polymer oily wear slider

2. Tubing explosion-proof device

3. 2mm cold-tolled plate slide, less resistance,and more smooth the rise and

fall,replaceable and easy maintenance for late.

4. Integral base, easy to install, and horizontal.

5. CE Standard 3 insurance gear design

6. Adopts Q345 international solid steel, avoid of deformation permanently.

7. Adopts Q345 international 25mm solid steel, avoid of deformation permanently.

8. 4 meters long 6mm thickness 50 x 120mm strengthen the heavy square tube.


Our advantages
* 15years experience : professional technic service , known well for related markets
* Certificate : CE, TUV , ISO
* 12000㎡ factory : large production and storage capacity
* After-sales service : well-trained sales team provide service within 24hours

Our service and support
1) 24 hours reply .
2) Professional solution for all your questions.
3) Customizd design is avaliable.OEM&ODM are welcome.
4) Exclusive and unique solution from our well-trained and professional engineers .
5)Special discount and protection of sales area provided to your distributor.
6)Provide different grades of products, to meet market requirements.
7) Free machines parts provided during warranty period .
