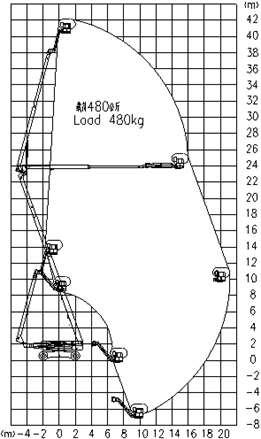

1. Platform Height: It would likely offer a maximum platform height of around 40 meters (approximately 131 feet), allowing operators to reach elevated work areas.
2. Articulating Boom: Similar to other articulating boom lifts, it would probably have multiple sections allowing flexibility in reaching various angles, positions, and heights.
3. Power Source: As indicated, it would be powered by a diesel engine, providing the necessary power for mobility and operating the lift mechanisms.
4. Horizontal Outreach: The expected horizontal outreach could be around 21 meters (approximately 68 feet), enabling workers to reach over obstacles or access difficult-to-reach areas horizontally.
5. Platform Capacity: Typically, the platform capacity might be around 480 kilograms (roughly 1058 pounds), allowing for one or two workers along with tools or equipment.
6. Controls and Safety Features: These lifts typically come equipped with user-friendly controls within the platform for ease of operation. They also feature various safety mechanisms such as overload protection, emergency lowering systems, safety harness attachment points, and more.
7. Gradeability (4WD): The gradeability increases to 40% under four-wheel-drive (4WD) conditions. When the lift is in 4WD mode, it can handle steeper slopes, up to 40%.

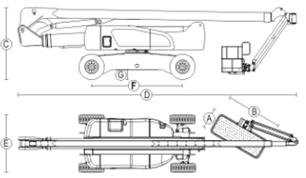

Specifications:
