  • GTZZ-38Z Articulating Boom Lift- Diesel Power
Name:
Tel:
Email:
Message:


Overview:

The GTZZ-38Z is an articulating boom lift powered by a diesel engine. It is a type of aerial work platform commonly used in construction, maintenance, and other industries to reach elevated areas. The articulating boom design allows for increased flexibility and maneuverability, as the boom can articulate or bend at multiple points, enabling access to difficult-to-reach areas.

1. Platform Height: It would likely offer a maximum platform height of around 38 meters (approximately 124 feet), allowing operators to reach elevated work areas.
2. Articulating Boom: Similar to other articulating boom lifts, it would probably have multiple sections allowing flexibility in reaching various angles, positions, and heights.
3. Power Source: As indicated, it would be powered by a diesel engine, providing the necessary power for mobility and operating the lift mechanisms.
4. Horizontal Outreach: The expected horizontal outreach could be around 18 meters (approximately 59 feet), enabling workers to reach over obstacles or access difficult-to-reach areas horizontally.
5. Platform Capacity: Typically, the platform capacity might be around 480 kilograms (roughly 1058 pounds), allowing for one or two workers along with tools or equipment.
6. Controls and Safety Features: These lifts typically come equipped with user-friendly controls within the platform for ease of operation. They also feature various safety mechanisms such as overload protection, emergency lowering systems, safety harness attachment points, and more.
7. Gradeability (4WD): The gradeability increases to 40% under four-wheel-drive (4WD) conditions. When the lift is in 4WD mode, it can handle steeper slopes, up to 40%.

Specifications:

Model GTZZ-38Z
Maximum Working Height  39.8m
Maximum Platform Height  38.1m

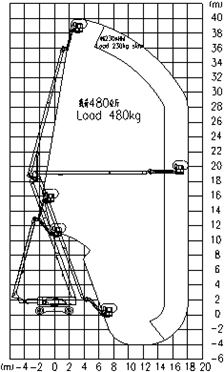

Maximum Horizontal Reach 18.1m
Platform Capacity(restricted) 480kg
Platform Capacity(non-restricted) 230kg
Maximum Up and Over Clearance  18.65m

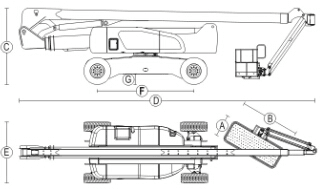

Length( jib stowed)  Ⓓ 11.46m
Machine Length (jib extended) Ⓓ 14.7m
Machine Width (axle retracted)  Ⓔ 2.49m
Machine Width (axle extended) Ⓔ 3.9m
Machine Height(stowed)  Ⓒ 3.17m
Wheel Base Ⓕ 3.96m
Ground Clearance-center Ⓖ 430mm
Platform Dimension  Ⓑ*Ⓐ 2.44*0.91*1.13m
Turning Radius(insite,axle retracted) 4.14m
Turning Radius(insite, axle extended) 3.13m
Turning Radius(outsite,axle retracted) 7.02m
Turning Radius(outside, axle extended) 6.5m
Drive Speed(stowed) 4.4km/h
Drive speed(raised or extended) 1.1km/h
Gradeability-stowed 40%
Solid Tire  385/65-22.5
Swing Speed 0~1/3rpm
Turntable Swing  360° Continuous
Platform Leveling Automatic leveling
Platform Rotation ±80°
Fuel Tank Capacity 151L
Machine Weight 20000kg
Voltage 12v
Drive & Steering 4*4*4
Engine Cummins(QSF2.8T-C71)
Rated power 53kw/2200rpm

Service:

1. Free 3D Design:Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service:From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty: All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
