- GTZZ-20A Articulating Boom Lift- Diesel Power
Overview：
The GTZZ-20A is an articulating boom lift powered by a diesel engine. It is a type of aerial work platform commonly used in construction, maintenance, and other industries to reach elevated areas. It offers a maximum platform height of around 20 meters (approximately 65 feet), allowing operators to reach significant heights for tasks at various elevated positions. The platform of the GTZZ-20A typically supports a capacity of approximately 230 kilograms (roughly 507 pounds), allowing for one or two workers along with their tools and equipment. The lift is equipped with user-friendly controls within the platform for easy operation. Additionally, it incorporates various safety features such as overload protection systems, emergency lowering mechanisms, safety harness attachment points, and interlocking systems for safe and secure operation.
Specifications:
The GTZZ-20A is an articulating boom lift powered by a diesel engine. It is a type of aerial work platform commonly used in construction, maintenance, and other industries to reach elevated areas. It offers a maximum platform height of around 20 meters (approximately 65 feet), allowing operators to reach significant heights for tasks at various elevated positions. The platform of the GTZZ-20A typically supports a capacity of approximately 230 kilograms (roughly 507 pounds), allowing for one or two workers along with their tools and equipment. The lift is equipped with user-friendly controls within the platform for easy operation. Additionally, it incorporates various safety features such as overload protection systems, emergency lowering mechanisms, safety harness attachment points, and interlocking systems for safe and secure operation.
Specifications:
| Model | GTZZ-20A |
 |
| Maximum Working Height | 22m | |
| Maximum Platform Height | 20m | |

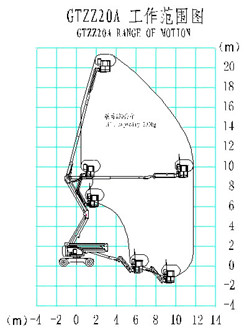

| Maximum Horizontal Reach | 12.4m | |
| Platform Capacity | 230kg | |
| Maximum Up and Over Clearance | 9.2m | |
| Machine Length( stowed) Ⓓ | 9.07m | |
| Machine Width (stowed) Ⓔ | 2.38m | |
| Machine Height(stowed) Ⓒ | 2.49m | |
| Wheel Base Ⓕ | 2.6m | |
| Ground Clearance Ⓖ | 430mm | |
| Platform DimensionⒷ*Ⓐ | 1.83*0.76m | |
| Tail Swing | 3.0m | |
| Turning Radius | 5.2m | |
| Drive Speed(stowed) | 6.3km/h(2WD);4.2km/h(4WD) | |
| Drive Speed(raised or extended) | 1.1km/h | |
| Gradeablity | 30%(2WD);4.2km/h(4WD) | |
| Solid Tire | 33*12-20 |
 |
| Swing Speed | 0~0.8rpm | |
| Turntable Swing | 360° Continuous | |
| Platform Leveling | Automatic leveling | |
| Platform Rotation | ±80° | |
| Hydraulic Tank Volume | 100L | |
| Machine Weight | 9000kg(2WD);9200kg(4WD) | |
| Control Voltage | 12v | |
| Drive & Steering | 4*2*2;4*4*2 | |
| Engine | Cummins B2.8-C58;Yanmar(4TNV94L-BXPHZ) | |
| Rated power | 45kw/2200rpm |
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
