- GTZZ-18 Articulating Boom Lift- Diesel Power
The GTZZ-18 articulating boom lift is a robust and versatile machine designed for accessing elevated areas in various industries, including construction, maintenance, and more. It offers a maximum platform height of around 18 meters (approximately 59 feet), allowing operators to reach significant heights for tasks at various elevated positions. The GTZZ-18 is powered by a diesel engine, providing ample power for both mobility and operating the lift mechanisms efficiently.
Its horizontal outreach capability is usually around 13 meters (approximately 43 feet), enabling workers to reach over obstacles or access areas that might be difficult to approach directly from below.The lift is equipped with user-friendly controls within the platform for easy operation. Additionally, it incorporates various safety features such as overload protection systems, emergency lowering mechanisms, safety harness attachment points, and interlocking systems for safe and secure operation.
Its horizontal outreach capability is usually around 13 meters (approximately 43 feet), enabling workers to reach over obstacles or access areas that might be difficult to approach directly from below.The lift is equipped with user-friendly controls within the platform for easy operation. Additionally, it incorporates various safety features such as overload protection systems, emergency lowering mechanisms, safety harness attachment points, and interlocking systems for safe and secure operation.
Specifications:
| Model | GTZZ-18 |
 |
|
| Maximum Working Height | 20m | ||
| Maximum Platform Height | 18m | ||
| Maximum Horizontal Reach | 10.8m | ||
| Platform Capacity | 230kg | ||
| Maximum Up and Over Clearance | 9.2m | ||

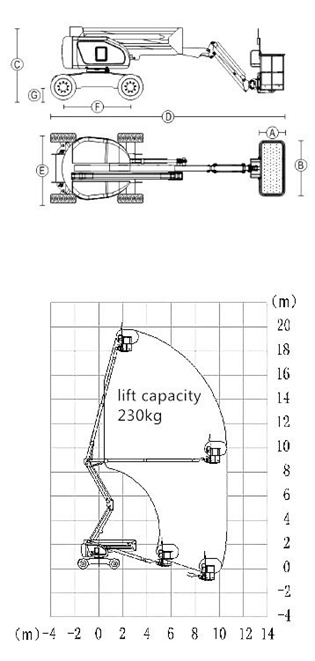

| Machine Length( stowed) Ⓓ | 8.25m | ||
| Machine Width (stowed) Ⓔ | 2.35m | ||
| Machine Height(stowed) Ⓒ | 2.38m | ||
| Wheel Base Ⓕ | 2.6m | ||
| Ground Clearance Ⓖ | 430mm | ||
| Platform DimensionⒷ*Ⓐ | 1.83*0.76m | ||
| Tail Swing | 3.0m | ||
| Turning Radius | 5.2m | ||
| Drive Speed(stowed) |
6.3km/h(2WD) 4.2km/h(4WD) |
||
| Drive Speed(raised or extended) | 1.1km/h | ||
| Gradeablity | 30%(2WD) 45%(4WD) | ||
| Solid Tire | 33*12-20 | ||
| Swing Speed | 0~0.8rpm | ||
| Turntable Swing | 360° Continuous | ||
| Platform Leveling | Automatical levelling | ||
| Platform Rotation | ±80° | ||
| Hydraulic Tank Volume | 100L | ||
| Machine Weight | 8680kg(2WD) 8800kg(4WD) | ||
| Control Voltage | 12V | ||
| Drive & Steering | 4*2*2;4*4*2 | ||
| Engine |
Cummins(B2.8-C58) Yamar(4TNV94L-BXPHZ) |
||
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
