- GTZZ-16Z Articulating Boom Lift- Diesel Power
The GTZZ-16Z articulating boom lifts offer increased height and reach compared to the GTZZ-14 model. The GTZZ-16Z typically offers a maximum platform height of around 16 meters (approximately 52 feet), allowing operators to reach elevated areas. This model is powered by a diesel engine, offering sufficient power for both mobility and operating the lift mechanisms. The horizontal outreach capability of the GTZZ-16Z might be around 9 meters (approximately 30 feet), allowing workers to reach over obstacles or access difficult-to-reach areas horizontally. The GTZZ-16Z is suitable for both indoor and outdoor use, depending on the ground conditions and terrain. However, considering it is diesel-powered, proper ventilation might be required for indoor operations due to emissions.
Specifications:
| Model | GTZZ-16Z |
  |
| Maximum Working Height | 18m | |
| Maximum Platform Height | 16m | |
| Maximum Horizontal Reach | 9.5m | |
| Platform Capacity | 230kg | |
| Maximum Up and Over Clearance | 7.75m | |

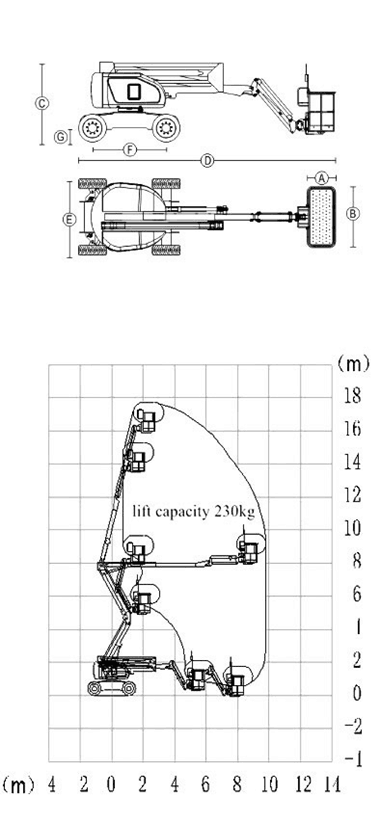

| Machine Length( stowed) Ⓓ | 6.8m | |
| Machine Width (stowed) Ⓔ | 2.29m | |
| Machine Height(stowed) Ⓒ | 2.38m | |
| Wheel Base Ⓕ | 2.2m | |
| Ground Clearance Ⓖ | 430mm | |
| Platform DimensionⒷ*Ⓐ | 1.83*0.76m | |
| Tail Swing | 3.0m | |
| Turning Radius | 5.2m | |
| Drive Speed(stowed) |
6.3km/h(2WD) 4.2km/h(4WD) |
|
| Drive Speed(raised or extended) | 1.1km/h | |
| Gradeablity |
30%(2WD) 45%(4WD) |
|
| Solid Tire | 33*12-20 | |
| Swing Speed | 0-0.8rpm | |
| Turntable Swing | 360° Continuous | |
| Platform Leveling | Automatic leveling | |
| Platform Rotation | ±80° | |
| Hydraulic Tank Volume | 100L | |
| Machine Weight |
7677kg(2WD) 7877kg(4WD) |
|
| Control Voltage | 12V | |
| Drive & Steering | 4*2*2;4*4*2; | |
| Engine |
Cummins(B2.8-C58) Yamar(4TNV94L-BXPHZ) |
|
Service:
1. Free 3D Design：Based on years of experience and expertise, our in-house team of senior design engineers can work out the best suitable lifting solutions for you. Free design of hydraulic lifts will be provided based on your work requirements, sites and budgets.
2. 7*24 Online Service：From pre-sales service to after-sales service, our professional engineers and sales team are always ready to offer customized suggestions and solutions for your lifting requirements. 24/7 Online technical support is available.
3. Warranty： All products are provided with 1-year warranty. Free parts will be sent to you if there is any problem caused by non-human factors during warranty time.
