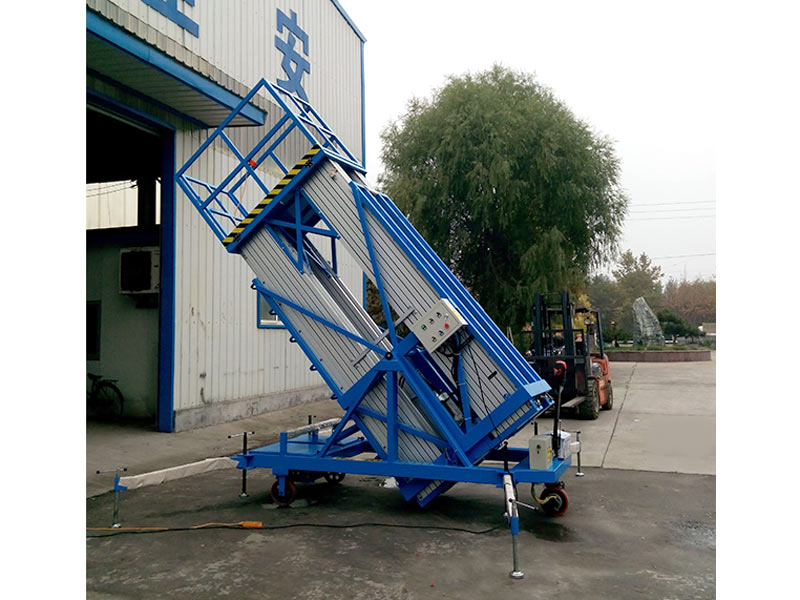

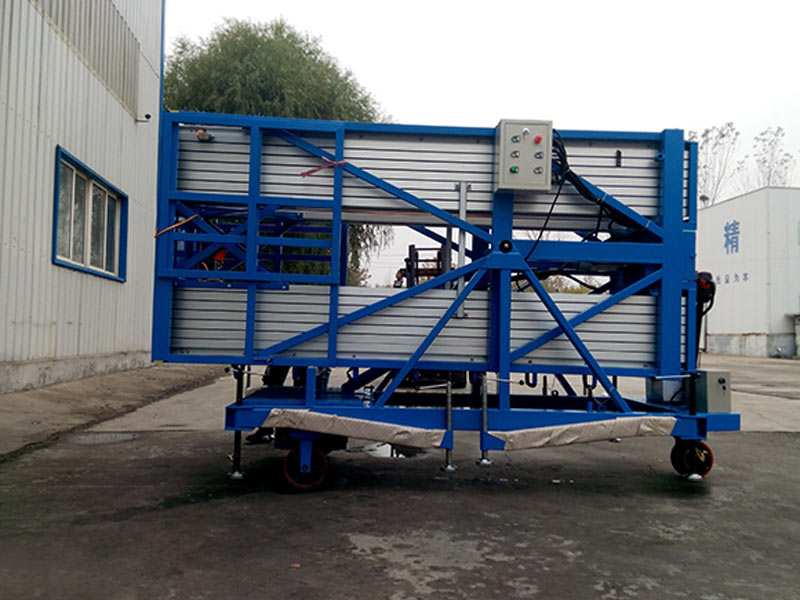

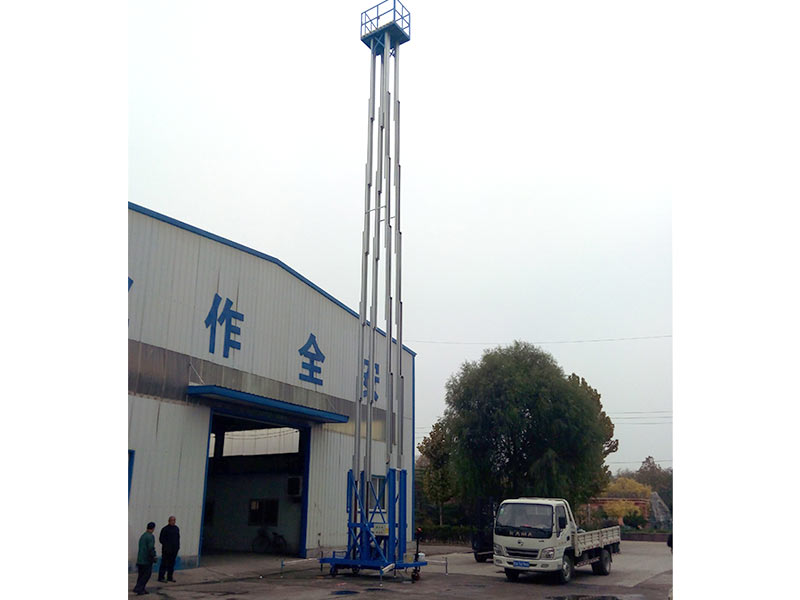

- Four column aluminum alloy hydraulic lift platform
All type Aluminum lift platform Support customization,
The equipment custom-made depend on your parameters,please let us know the working height,Loading Capacity and Table size needed.
Aluminum lift platform Standard parameters
|
Model |
Lift Height (m) |
Loading（kg） |
Table Size（m） |
Voltage（V） |
Power（kw） |
Total Weight（kg） |
Total Size（m） |
|
|
Single Mast |
SJYL0.1-4-1 |
4 |
100 |
0.6*0.6 |
220/380 |
1.1 |
280 |
1.3*0.8*1.98 |
|
SJYL0.1-6-1 |
6 |
100 |
0.6*0.6 |
220/380 |
1.1 |
320 |
1.3*0.8*1.98 |
|
|
SJYL0.1-8-1 |
8 |
100 |
0.6*0.6 |
220/380 |
1.1 |
340 |
1.3*0.8*1.98 |
|
|
SJYL0.1-10-1 |
10 |
100 |
0.6*0.6 |
220/380 |
1.1 |
360 |
1.4*0.85*1.98 |
|
|
Double Mast |
SJYL0.2-6-2 |
6 |
200 |
1.35*0.6 |
220/380 |
1.5 |
450 |
1.4*0.85*1.98 |
|
SJYL0.2-8-2 |
8 |
200 |
1.35*0.6 |
220/380 |
1.5 |
560 |
1.4*0.85*1.98 |
|
|
SJYL0.2-10-2 |
10 |
200 |
1.35*0.6 |
220/380 |
1.5 |
680 |
1.6*0.9*1.98 |
|
|
SJYL0.2-12-2 |
12 |
200 |
1.47*0.6 |
220/380 |
1.5 |
720 |
1.7*0.9*1.98 |
|
|
SJYL0.2-14-2 |
14 |
200 |
1.47*0.6 |
220/380 |
1.5 |
780 |
1.9*1*2.3 |
|
